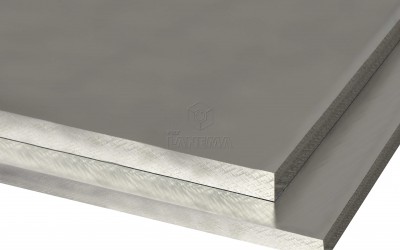

A 7000 series aluminium alloy that has successfully replaced steel in many mould applications. It combines high thermal conductivity, resistance, ease of machining and polishing, dimensional stability and consistency across the entire thickness of the plate. The use of this material results in reduced operating costs and increased production of parts. Alumold®-500 moulds should have a maximum operating temperature of 110 ° C and a partition line stress of 5000 PSI (nominal) and 7200 PSI (maximum).
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | - | - |
|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | - | - | - | - | - | - | - |
| Max | 0.04 | 0.08 | 1.6 | - | 2.4 | - | 6 | - | Remainder |
main characteristics
- Excellent mechanization and polishing
- Good dimensional stability and high mechanical properties (free of stresses)
- It is possible to weld* (TIG/MIG)
- High hardness
* Welding for recharging is possible under certain condition. The reduction of the resistance in the welding area must be considered.
Applications
- Injection molds - blow
- Molds for thermoformed
- End Base Boards
- Components of machines subject to high mechanical stresses
- Molds for toys and automotive industry
- Industrial tools and supports
- Mechanical guides
