main characteristics
- Excellent dimensional stability
- Low level of internal residual stresses, which considerably reduces the deformation effects of the material during machining
- Immediate availability (thicknesses up to 500mm)

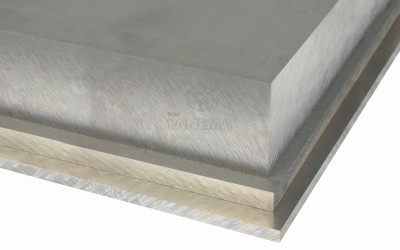

AW 5083 CAST
This quality is obtained by CAST process, which allows the material to have a good dimensional stability and homogeneity. Usually used in prototype moulds, stamping moulds, casting moulds, foam and blow moulds.
Chemical Composition (% Weight)
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | - | - |
|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | - | 0.4 | 4.0 | 0.05 | - | - | - |
| Max | 0.4 | 0.4 | 0.1 | 0.1 | 4.9 | 0.25 | 0.25 | 0.15 | Remainder |
Polishing
Machinabillity
Weldability
Electrical/Thermal
Conductivity
70 HB
Brinell Hardness
2.66
Density
Applications
- Use in patterns and models
- Control and Calibration Tools
- Molds for prototypes
- Molds for thermoforming
